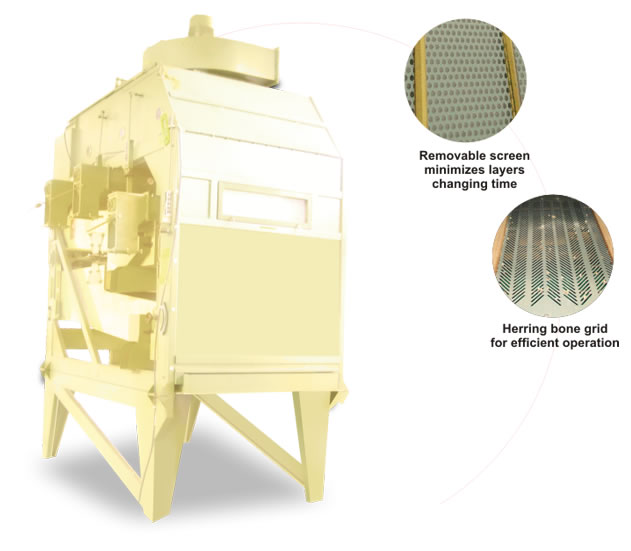

BAJAJ-CEC SEED CLEANER is uniquely designed with two Sieve-boats Screen system maximizing the cleaning efficiency, minimizing the wear and tear and ease of removability & changebility. A single roll feeder is provided to assure even distribution of seed and proper control of seed volume to the cleaner. The aspiration chambers are fitted with waste augers to remove sand, stone, particles, foreign matters, light impurities etc.
top

  ENERGY SAVING FEATURES
  • The machine has an integral fan.
  • Common drive train for sieve-boat, trash conveyors and motors.
top
  MECHANICAL ADVANTAGES
  • The screen system consists of two Sieve-boats with multi-flow variable screen system and drive
    speed which can be adjusted mechanically.
  • Each sieve-boat contains 2 screen layers each consisting of 3 screen parts for ease of handling
    and removability.
  • The machine is of steel construction with sieve-boats of laminated wood.
  • Material feed roller for regulated feeding.
top

  TECHNICAL SPECIFICATIONS
Fan Motor 10 HP
Screen Size - L x W
 800 x 1500 mm
Rated Capacity 5 TPH on Cotton seed at 7 to 10% Moisture.
Air Requirements 6000 CFM - Approximate
Screen Area 14.4 Sq. Meter
Motor for Sieve-Boat 3 HP
* 2 TPH and 4 TPH Capacity Seed Cleaners available on demand.
top

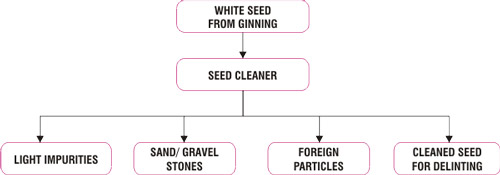

  COTTON SEED CLEANING OPERATION
