   Protects fibre quality
  Cleans gently and efficiently
  Optimizes ginning performance
  Robust construction ; longer life
  Protects gin from damage by impurities
  Made with superior technical know-how
  Reduces maintenance of ginning machines

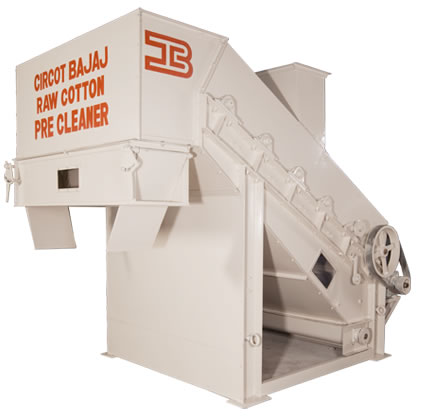

  FEATURES & BENEFITS
  • Protects fibre quality
  • Cleans gently and efficiently
  • Optimizes ginning performance
  • Robust construction; longer life
  • Protects gin from damage by impurities
  • Made with superior technical know-how
  • Reduces maintenance of ginning machines.
  • Removes yellow/ pre-matured bolls, trash, stones and others impurities from raw cotton, there by improving the quality of raw cotton prior to ginning.
  • Increases productivity of ginning machines
  • Reduces load on ginning machines
  • Auto feeding made easy and trouble-free
  • Auto feeder maintenance reduced to minimum
  • Better quality of lint yields higher returns
  • Considerable saving in labour cost
  • Available in different models with different feeding systems for specific requirements.
  • All models can also be wheel-mounted for easy mobility.
top

  TECHNICAL SPECIFICATIONS
Model I
Model II
Model III
No. of cleaning cylinders
Four
Five
Six
Width
1200/1500/
1800 mm
1200/1500/
1800 mm
1200/1500/
1800 mm
Raw cotton cleaning
capacity per hour
3500/4500/
6000 Kgs.
3500/4500/
6000 Kgs.
3500/4500/
6000 Kgs.
Power required (max)
4/7.5 H.P.
7.5/10 H.P.
7.5/10 H.P.
Wheel-mounting
(optional)
Yes
Yes
Yes
Feeding System
Mechanical/
Pneumatic/
Manual
Mechanical/
Pneumatic/
Manual
Mechanical/
Pneumatic/
Manual
top
