| Machining Infrastructure consisting of large number of sophisticated CNC's, conventional machine tools & highly skilled manpower. Our state-of-the-art machining facility is one of the largest of its kind in Central India. |
| To effect timely delivery of zero defect products, strict quality norms are followed at every stage. |
Our cluster of machineries comprise of :
1) CNC :
Vertical Milling Centers, Turning Centers, Gear Hobbing, Five Axis Plano Millers, Glint (Pneumatic Milling).
2) Conventional :
Lathes both general & special purpose, Milling both Vertical & Universal, Shapers, Slotters, Centerless Grinder, Plano Miller, Plainers, Pneumatic & Hydraulic Tapping arms. |
| Glimpses of some of our machines have been shown here... |
 |
 |

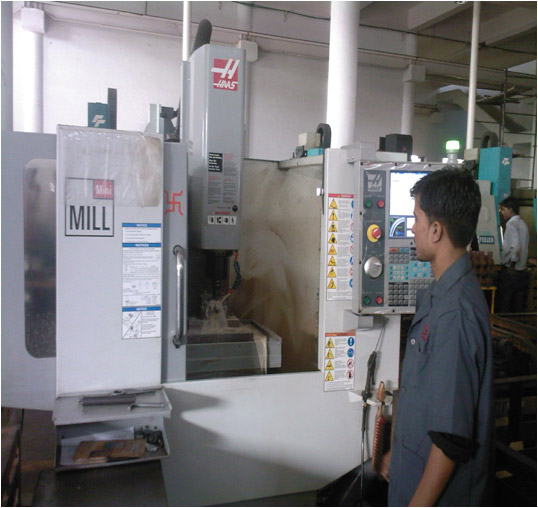

HAAS Make CNC Vertical Maching Center for key ways |
 |

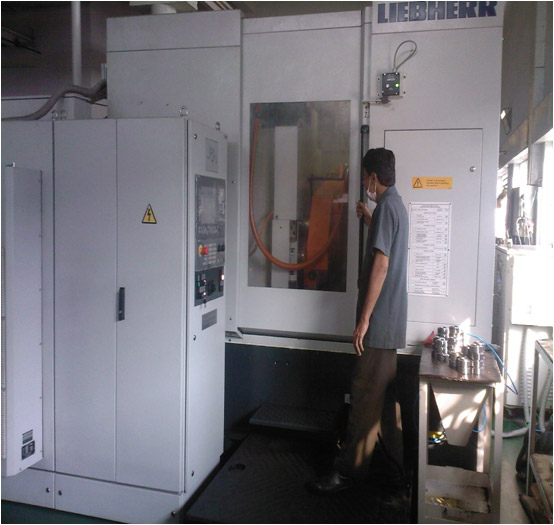

LIBHERR make CNC gear hobbing
Maximum Diameter of Gear Cut : 380mm
Module : upto 7
Accuracy : DIN 7/8 standards |
|
 |

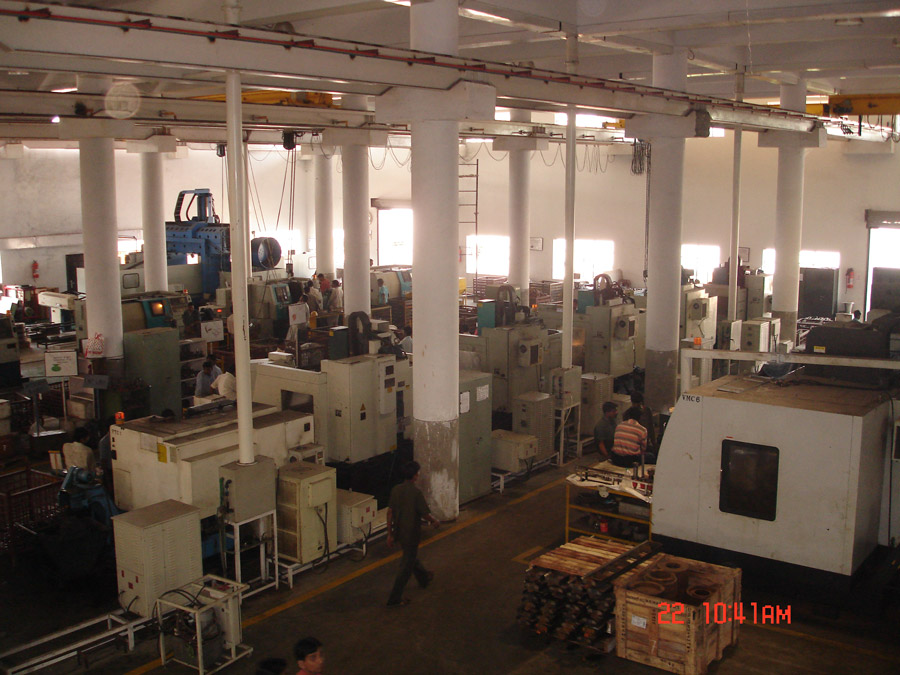

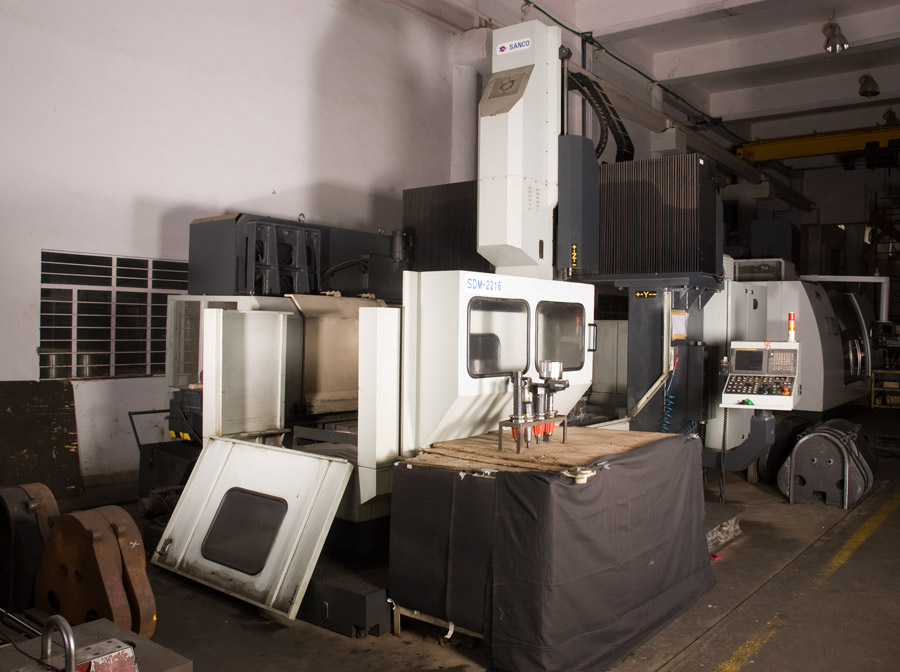

View of CNC Machine Tool Area |
 |

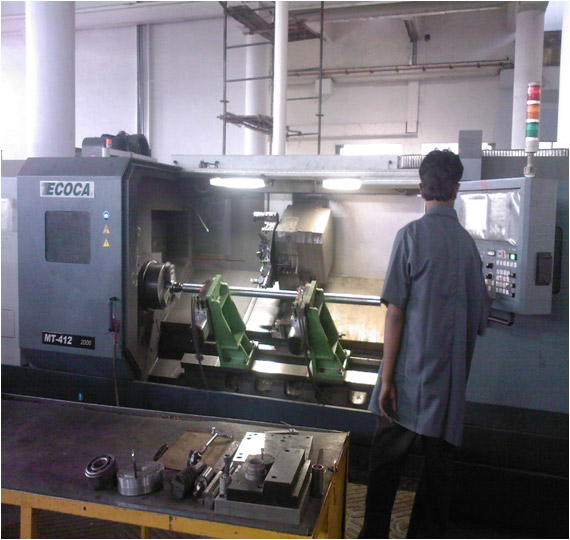

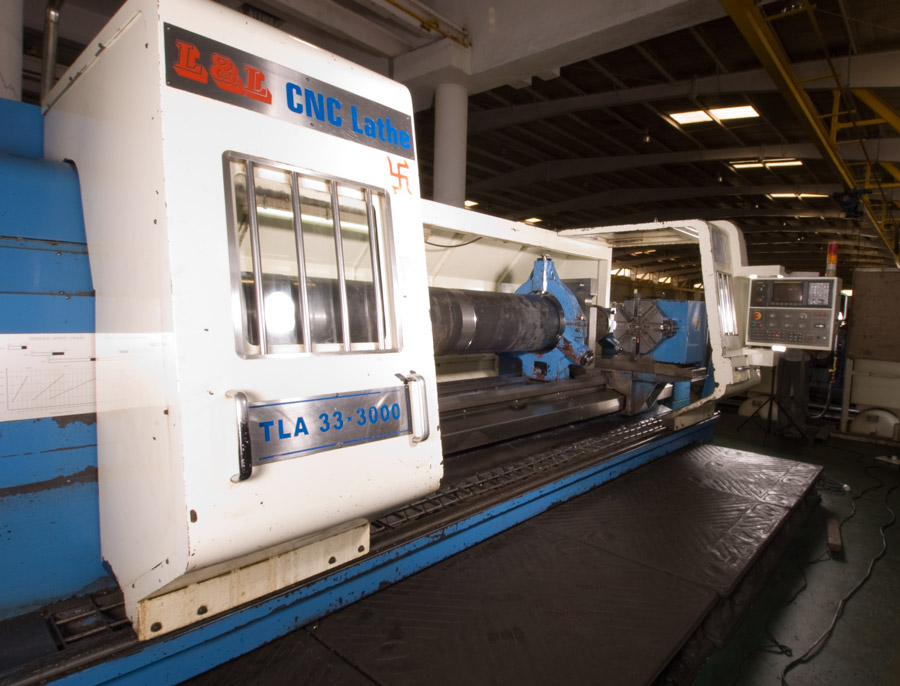

CNC Turning Center
Maximum Turn Diameter : 550mm
Maximum Length : 2700mm |
|
 |

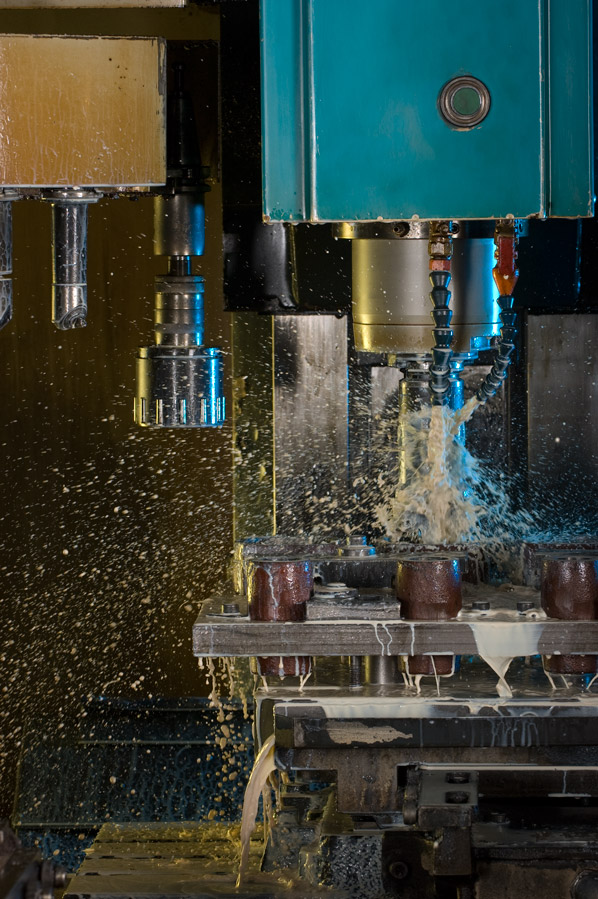

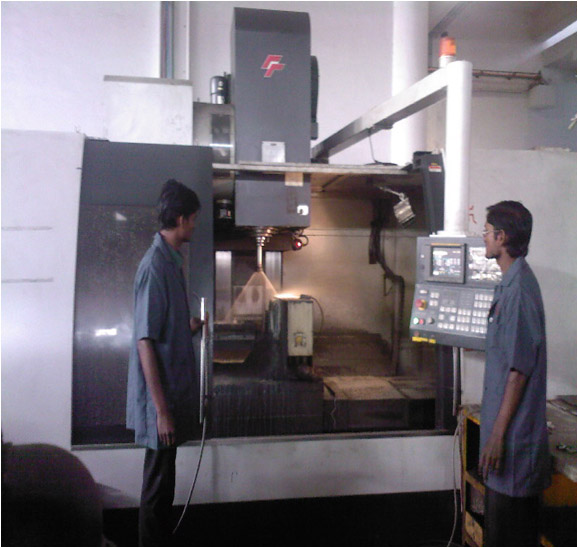

View of Maching of a component on Vertical Maching Center |
 |

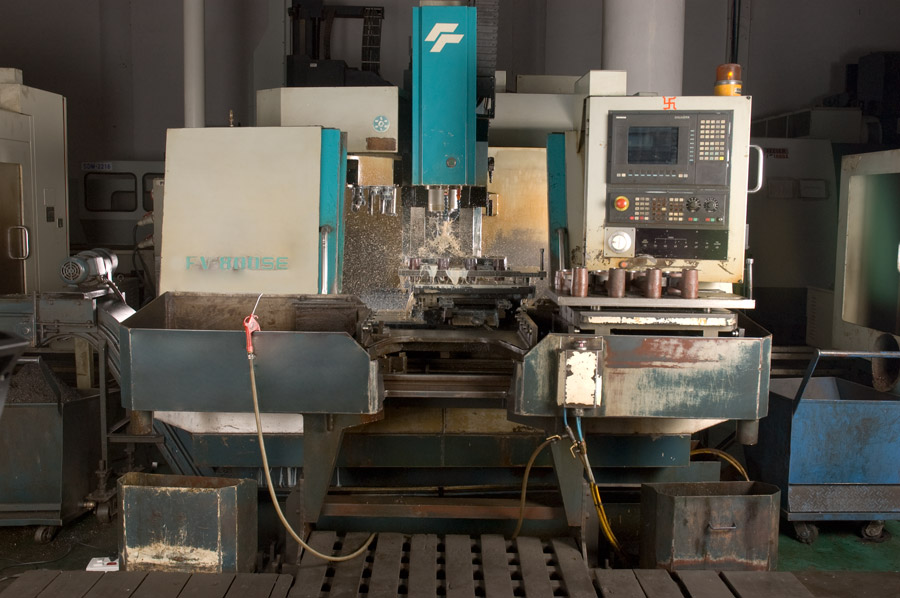

CNC Vertical Machining Center
Table Size : 1150x475mm
X,Y,Z, Travel: 000x500x505mm |
|
 |
CNC Heavy Duty Vertical Machining Center.
X,Y,Z, Travel : 2200 x 1000 x 800mm
Table Size : 2400 x 960mm |
 |
Maching of a Component in progress on CNC Double Column Plano Millers
5 Axis Machining Head
Table Size : 4000x1700 mm
X,Y,Z, Travel : 4200x2400x900mm |
|
 |

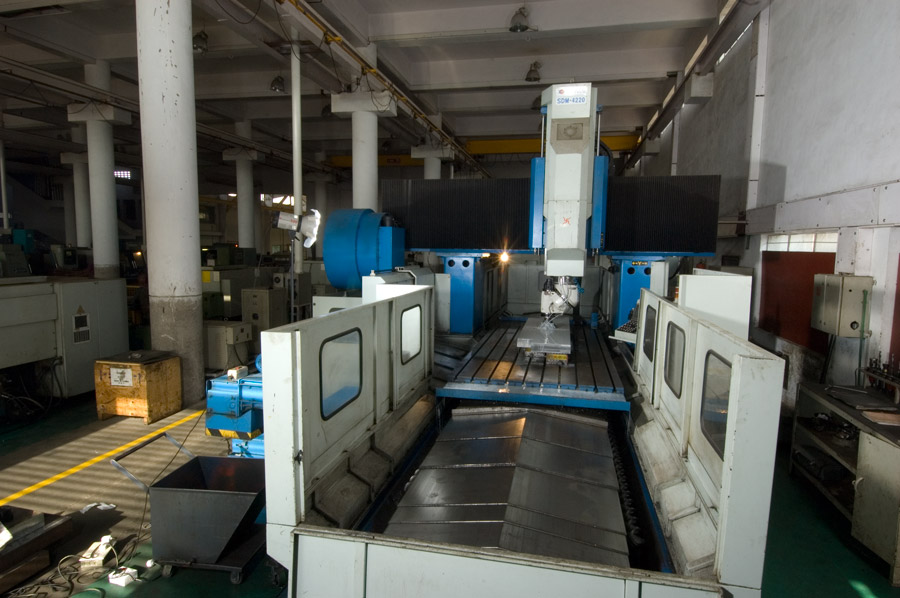

CNC Double Column Plano Miller
5 Axis Machining Head
Table Size : 2160x1400x750mm
|
 |

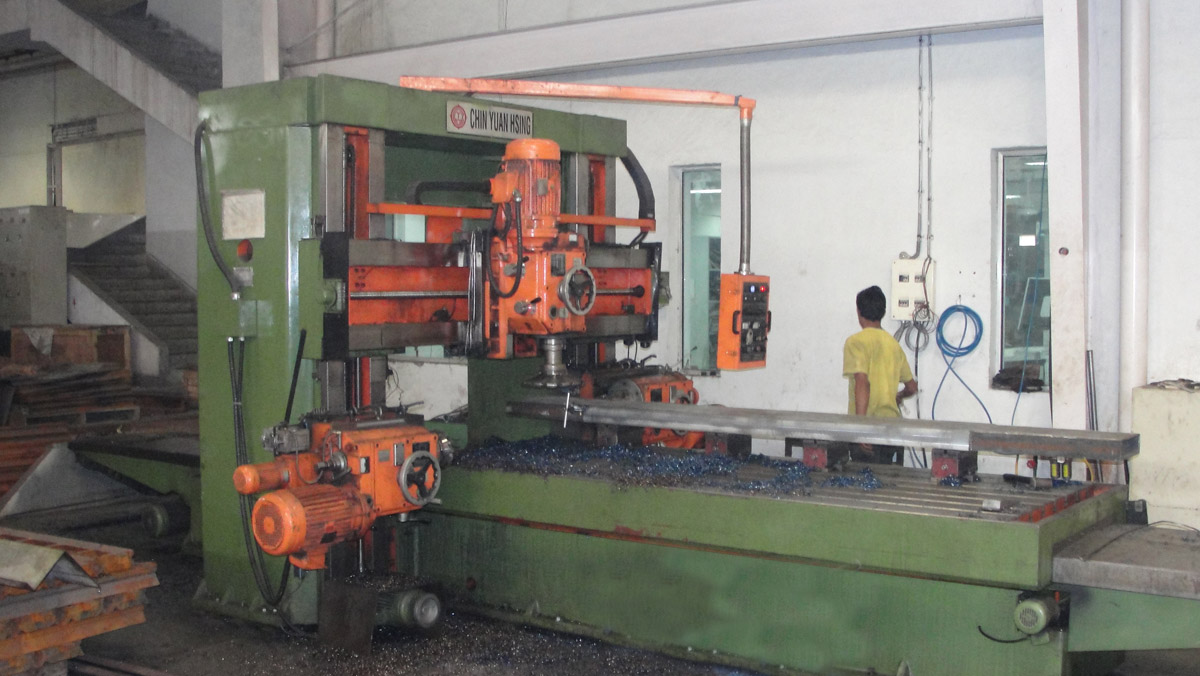

Convensional Plano Miller |
|
 |

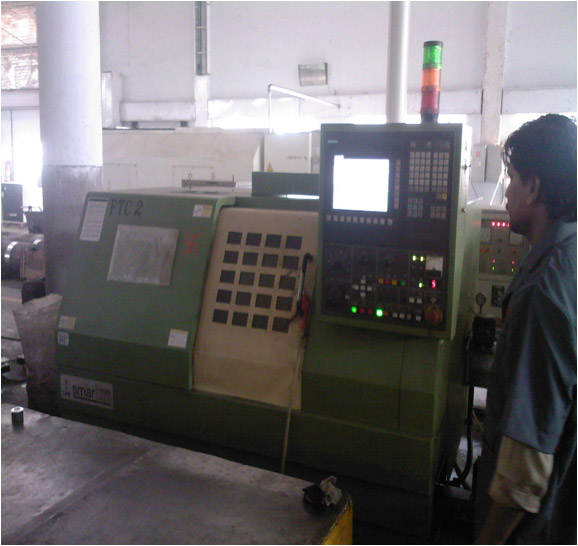

CNC Turning Center
Maximum Turn Diameter : 510mm
Maximum Length : 2000mm |
 |

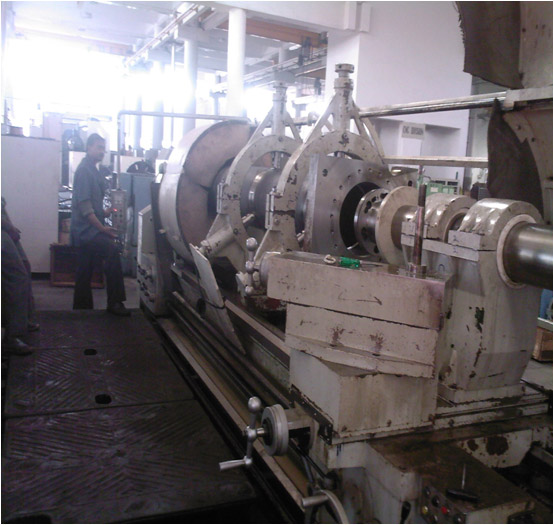

9 Meter Bed Lathe for Special Applications of boring/skiving/burnishing of long Hydraulic cylinders up to 450mm diameter and the surface finish of the bore up to 0.07Ra
|
|
 |
CNC Turn Master
Maximum Turn Diameter : 35mm
Maximum Length : 380mm |
 |

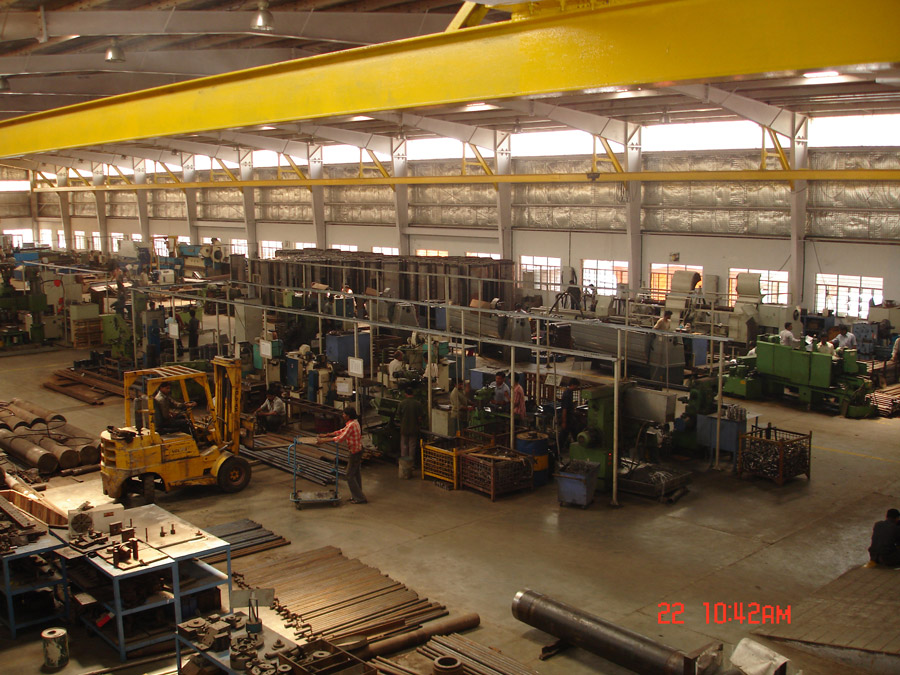

View of Conventional Machine Tool Area |
