Double Roller Ginning Machine
Bajaj Double Roller Cotton Gin Golden Jubilee Model


Baling Presses for Other Applications

  Tractor Attachments for Cotton Ginning Industry
  Delinting & Decorting Machinery
  Components & Machined Parts
  Electrical Panels & Accessories
  Structural Fabrication
  Mechanical Conveyors & Elevators
  Humidification Systems
  Dust / Waste Handling Systems
  Bajaj Steel Buildings
  Engineering & Costruction Projects



   Robust Body
  Simple Operations
  Easy Maintenance
  Interchangeability of Spares
  Lowest Power Consumption
  Higher Output
  Higher Profits

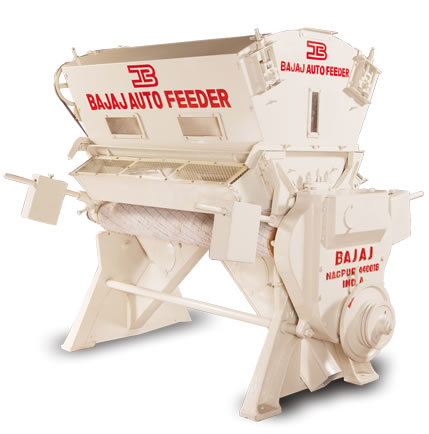

View of Bajaj DR Gin with Autofeeder
Over 55000 Bajaj Double Roller Ginning Machines are operating throughout India and various other countries like Bangladesh, Egypt, Indonesia, Kenya, Madagascar, Myanmar, Nepal, Nigeria, Peru, Shri Lanka, Tanzania, Uganda, Zambia, Zimbabwe etc.


  BENEFITS
   Bajaj DR : A profit Gin :
  • Protects Fibre Quality ; Gives Production of Clean ; Lustrous Cotton Lint.
  • Works efficiently ; reduces cost and Adds to profitability.
  • Engineering experiences and expertise combined to ensure lowest operational and maintenance cost.
  • Consumes less power.
  • All gears, connecting rod, head, beater arm, swing lever etc. are made of high Nodularity ductile iron.
  • All rotating parts are provided with precision bearings to reduce friction for optimum efficiency.
  • Connecting housing is provided with heavy duty self aligning roller bearing.
  • Leather roller shafts are interchangeable and if one side of the roller is worn out, It can be reversed.
  • Lint output remains uniform on full length of the rollers.
  • Moving parts are housed in dust proof gear box for smooth running.
  • Over 55,000 gins are in efficient operation in India & Abroad.
  • Fully backed by after sales services, provided by team of trained and Competent engineers.
  • High quality replacement parts and spares available at all times.
top

  FEATURES
  • Lowest power consumption per quintal lint ginned
  • Fully machined fly wheel / machine pulley
  • All rotating parts are precision machined using advanced manufacturing process on CNC machines providing best finish & Tolerances to provide enhanced life of the machine & lowest down time.
top

  FREE ACCESSORIES

Box Spanner, ½ x 5/8 “ , T. Spanner 3/8”, 1/8” BSP Threaded T Spanner , Beater Adjustment Gauge - One set per lot of 12 DR.

top

  OPTIONAL SUPPLY

Templates, Foundation Bolts, Motor rails, Motor pulley, Guard for pulley, V-Belts, Seed Screw Conveyor, Roll Press, Roll Cutting stand, Cotton bag, Weighing stand, Lint Filling Platform, Bus bar Panel with all required Fittings, Platform Structure, Complete range of spares, Doffer Roller Assembly, Electrical Motor & Electricals.

top

  TECHNICAL SPECIFICATIONS
 Model
Jumbo
Extra long
Special/
Standard
Flat Length
1361 mm
1191 mm
1061 mm
Production capacity (Lint)*
65 to 105
Kgs./Hr
50 to 95
Kgs./Hr
40 to 70
Kgs./Hr
Processing Capacity (R/C)
200 to 265
Kgs/Hr
160 to 225
Kgs/Hr
125 to 175
Kgs/Hr
Electric Motor
5 H.P.
132 S Frame
5 H.P.
5 H.P.

M/C Centre(min.)
2357 mm
2187 mm
2057 mm
M/C Bolt Centre
1477 mm x
760 mm
1307 mm x
760 mm
1177 mm x
760 mm
Space b/w Row (min. c/c)
3660 mm
3660 mm
3660 mm
Operating Speed
950 /1000
RPM
1000/1040
RPM
1000/1040
RPM
Driving V-Belts
2 Nos. ‘B’
Section
2 Nos.
‘B’ Section
2 Nos. ‘B’
Section
Bearings
21 Nos.
19 Nos.
19 Nos.
Lubrication ( Grease )
150 Gms/
8 Hr
150 Gms/
8 Hr
150 Gms/
8 Hr
Gears
Planetary /
Helical
Planetary /
Helical
Planetary /
Helical
Seed Discharge
Slides /
Conveyor
Slides /
Conveyor
Slides /
Conveyor
Removal of Cotton Lint
Front & Rear
Front & Rear
Front & Rear
Min Distance B/w M/c
880 mm
880 mm
880 mm
Rotation of Driving Pulley
Any Direction
Any Direction
Any Direction
