  INTRODUCTION

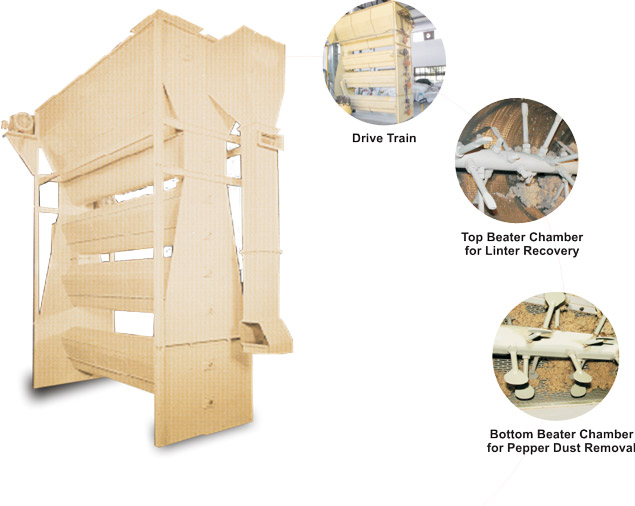

BAJAJ-CEC LC 410D is uniquely designed with the paddle sections capable of handling capacities in access of 10 tons per day of recovered linter. The cellulose yield of removed linter is maintained at maximum. The linter cleaner accommodates automatic screen cleaning at desired intervals. The LC-410D provides additional cleaning where its needed the most, three times the effective pepper section cleaning than the competitors.
top

  SALIENT FEATURES
  • Linter Cleaner also incorporates Automatic Screen Cleaning which blows down the entire length of both
    hull pepper sections with high-pressure air. Manual blow-down and unnecessary shutdown are thus
    eliminated.
  • The blow down system is PLC controlled and can be programmed both for duration & frequency of the
    air blasts.
top
  MECHANICAL ADVANTAGES
  • 28% greater cleaning surface area for first-pass cleaning than others.
  • Electric motors are conveniently located for ventilation & easy maintenance.
  • Reclaim section designed to accommodate any additional shale removal which may be required.
top

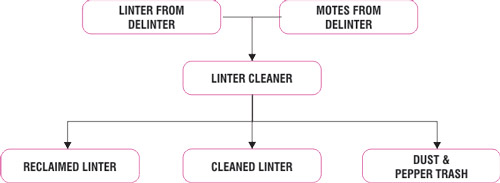

  BAJAJ-CEC LINTER CLEANER OPERATION
2 x 500 MM Beaters 3 PH , 1000 RPM
Pepper section and reclaim section rolls
 3 HP, 1000 RPM
top

  BAJAJ-CEC DECORTICATING OPERATION
