  INTRODUCTION
CEC was the first to envision and implement the modern twin-roll hulling design since 1962. First to incorporate a decorticator with a basket beater and high speed separation. First to successfully process undelinted cottonseed with lowest kernel with hull. Highest Capacity per meter width of twin roll drum.
top

  SALIENT FEATURES
  • l No uncut seed recycling - virtually 100% of seed is cut and processed
top
  MECHANICAL ADVANTAGES
  • Replaceable cutting surface on decorticator roll will process the highest tonnage at the lowest cost.
  • Two removable Basket Beater Trays provided for ease of processing multiple oil seeds such as cottonseed
    delinted / undelinted, sunflower, soybean and groundnut etc.
  • Three hull aspiration ducts allows for maximized hull removal and meat purification to obtain desired protein
    levels
top

  TECHNICAL SPECIFICATIONS
Capacity - Black Seed 8 to 9 TPH
Twin Roll Motor
 25 HP 1500 RPM
Hydraulic Unit Motor 2 HP 1200 RPM
Feeder Motor

1 HP Variable
Cutting Segments 38 (19 per roll)
Shaker Tray Motor 3 HP
Basket Beater Motor 1.5 HP
Air Requirement 5200 CFM
top

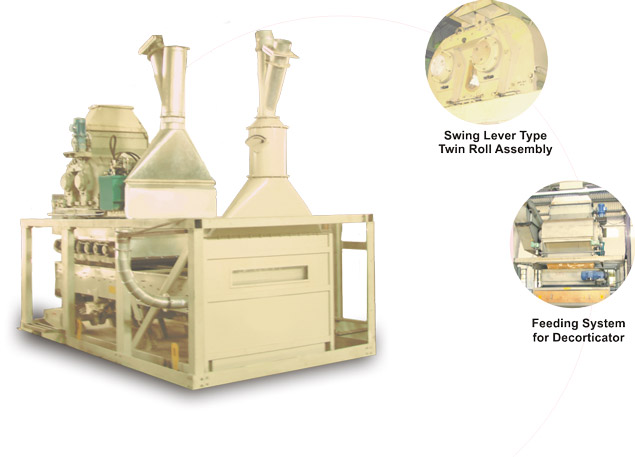

  BAJAJ-CEC DECORTICATING OPERATION
