  Medium Capacity (15-18 Bales/hr) & (20 -22 / 25 Bales/hr)
  High capacity (30-35 Bales/hr)
  Fully automatic
  High/Universal Density Bales
  Lowest cost per Bale
  Most Profitable

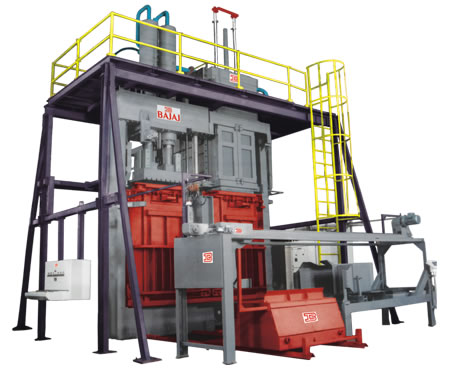

High Capacity Press (30-35 Bales/Hr.)
We excel in manufacturing wide range of automatic and semi-automatic Baling Presses for cotton, textile, HDPE bags, coir, bio mass and many other applications. However we are the world leader in Cotton Baling Presses.
top

  FEATURES & BENEFITS FOR HIGH & MEDIUM CAPACITY PRESSES
  • Fully Automatic
  • Double Box Press
  • High speed automatic revolving of boxes
  • High/universal Density Bales
  • Most Profitable
  • International Specifications
  • Highest Work Safety
  • Lowest Cost Per Bale
  • Lowest Power Consumption Per Bale
  • Lowest maintenance
  • Lowest packing material cost
  • Lowest manpower requirements
  • Very heavy duty structure for longer life
  • High pressure power pack
  • Door less mechanism
  • Down packing, no underground pit
top

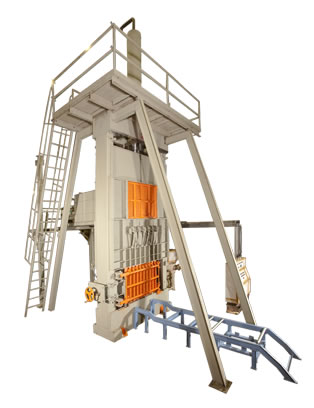

  FEATURES & BENEFITS FOR SMALL CAPACITY PRESS
  • 8 bales / hour
  • Semi Automatic
  • Single box press
  • High/ Universal Density Bales
  • Most Profitable
  • International Specifications
  • Highest Work Safety
  • Lowest Cost Per Bale
  • Lowest Power Consumption Per Bale
  • Lowest maintenance
  • Lowest packing material cost
  • Lowest manpower requirements
  • Very heavy duty structure for longer life
  • High pressure power pack of German Technology
  • Door mechanism
  • Down packing, no underground pit
top


  TECHNICAL SPECIFICATIONS
TECHNICAL DATA
HIGH CAPACITY
MEDIUM CAPACITY
 SMALL CAPACITY
Production Capacity
30-35 Bales/Hr.
15-18 Bales/Hr. & 20-22 Bales/Hr.
 8 Bales/Hr.
Power Required
75 HP- Main Pressing
50 HP / 60 HP - Main Pressing
40 HP- Main Pressing

30 HP - Tramper
20 HP - Tramper


5 HP Oil Cooling / Cleaning
2 HP Oil Cooling / Cleaning
2 HP Oil Cooling / Cleaning
SIZE OF MACHINE
Length
4800 mm
4800 mm
 2400 mm
Width
4200 mm
4200 mm
 4200 mm
Height
8000 mm
8000 mm
 9000 mm
Box Size *
1016 mm X 508 mm /
1220 mm X 460 mm
1016 mm X 508 mm /
1220 mm X 460 mm
1220 mm X 460 mm
Bale Density
High Density or
Universal Density
High Density or
Universal Density
 High Density or
Universal Density
Shed Size (l X w X h)
16 M X 12 M X 12 M height
16 M X 12 M X 12 M height
 12 M X 9 M X 12 M height
Operating
By PLC Panel Automatic
By PLC Panel Automatic
By PLC Panel Automatic
Tramper
Hydraulic
Hydraulic
 Not Required
Fiber Pusher
Hydraulic (High Speed)
Hydraulic (High Speed)
 Hydraulic (High Speed)
FEATURES
Bale Handling Trolley
Provided
Optional
 Not Required
Auto Bale Ejection
Provided
Optional
 Optional
Online Bagging
Provided
Optional
 Optional
Online Weighing
Provided
Optional
 Optional
Online Sampling
Optional
Optional
 Optional
Safety Mat
Provided
Optional
 Optional
SS Lint Slide with Louvers
Optional
Optional
 Optional
SS Lint Slide without Louvers
Optional
Optional
 Optional

  * Other Box sizes can be provided on request.
