  Robust Body
  Simple operation
  Easy Maintenance
  Higher Output
  High Performance Hydraulics

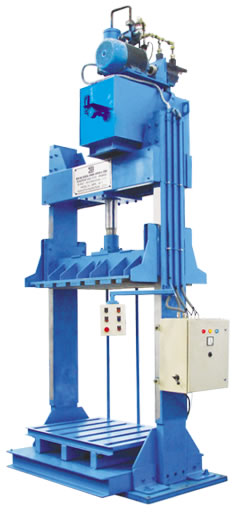

BAJAJ TEXTILE BALING PRESS MODEL BP PL- 40T is specially designed for packing of textile, HDPE bags, cloths and similar material (Sacks, Staple Fiber etc). Maximum efficiency and user friendly design to facilitate operation and maintenance. Minimum space utilisation by compact design. The elegant electrical panel to give ease of operation. Stroke of press ram can be adjusted for required bale size.

Manual material loading, unloading and stapping.
top

  TECHNICAL SPECIFICATIONS
Machine Type Hydraulic Baling Press
Hydraulic Cylinder Double Acting
Operating Pressure Max. 210 Bars
Pressure Load Max 40. Tons
Stroke 150 mm to 1450 mm
Power Consumption Aprox 6 KWH
Electric Motor 9.3 KW (12.5 HP)
Material Size before Compression Length 1350 mm
Width 950 mm
Height 1400 mm
Weight of Machine 3.2 Tons approx.
Overall Dimensions of Machine Length 1930 mm
Width 1250 mm
Height 4640 mm
Bag Quantity 500-1000 depending on the material

Note: DO NOT LOAD BAGS ONLY ON ONE SIDE
top

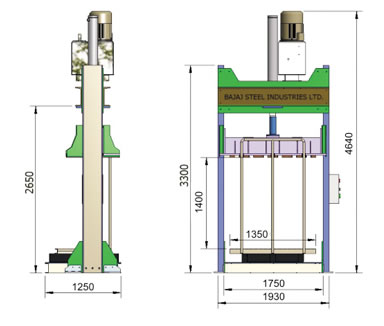

  SCHEMATIC VIEW
